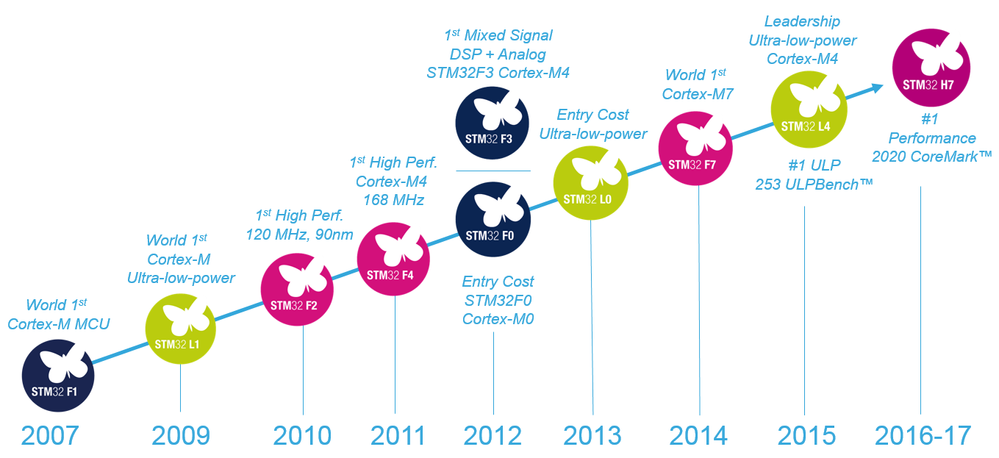

STM32 timeline and peripherals changes
We concentrate on the "general purpose" STM32, omitting 'WB/'WL (wireless).
We don't treat 'L4+ as a separate sub-family here, as it shares most characteristics with 'L4.
We concentrate on the "general purpose" STM32, omitting 'WB/'WL (wireless).
We don't treat 'L4+ as a separate sub-family here, as it shares most characteristics with 'L4.
| STM32 Family | Introduced | Perk | Cortex | max clock | FLASH | GPIO | DMA | BKPSRAM | SPI | USB |
| F1 | 2007 | First | M3 | 72 MHz | no ECC | APB | single-port ORed requests | device (except OTG FS in 'F105/107) | ||
| L1 | 2009 NRND 2023 | Low‑power Mid‑end | M3 | 32 MHz | erased at 0x00 has EEPROM with ECC | AHB | single-port ORed requests | device | ||
| F2 | 2010 | Hi‑end M3 | M3 | 120 MHz | no ECC, has OTP | AHB | 2x dual-port channel select | 4kB | OTG FS+OTG HS | |
| F4 | 2011 | Hi‑end M4 | M4 | 180 MHz | no ECC, has OTP | AHB | 2x dual-port channel select | 4kB | OTG FS+OTG HS | |
| F0 | 2012 | Low‑end | M0 | 48 MHz | no ECC | AHB | single-port | device | ||
| F3 | 2012 | Analog/ Mixed | M4 | 72 MHz | no ECC | AHB | single-port ORed requests | device | ||
| L0 | 2013 | Low‑power Low‑end | M0+ | 32 MHz | erased at 0x00 has ECC, has EEPROM | IOPORT | single-port | device | ||
| F7 | 2014 | Hi‑end M7 | M7 | 216 MHz | no ECC, has OTP | AHB | 2x dual-port channel select | 4kB | OTG FS+OTG HS (HS PHY 'F723) | |
| L4 | 2015 | Low‑power Hi‑end | M4 | 80 MHz | has ECC, has OTP | AHB | single-port | OTG FS | ||
| H7 | 2016 | Hi‑end M7(+M4) | M7(+M4) | 480 MHz | has ECC | AHB4 | 4x(mixed) DMAMUX | 4kB | OTG FS+OTG HS | |
| G0 | 2018 | Low‑end | M0+ | 64 MHz | has ECC, has OTP | IOPORT | single-port DMAMUX | device+host, but only in 'G0Bx/0C1 | ||
| G4 | 2019 | Analog/ Mixed | M4 | 170 MHz | has ECC, has OTP | AHB | single-port DMAMUX | device | ||
| L5 | 2019 | Low‑power Secure Mid‑end | M33 | 110 MHz | has ECC, has OTP, | AHB | 2x single-port DMAMUX | device | ||
| U5 | 2021 | Low‑power Secure Hi‑end | M33 | 160 MHz | has ECC, has OTP | AHB | GPDMA+LPDMA | OTG_FS | ||
| C0 | 2023 | Lowest‑end | M0+ | 48 MHz | no ECC, has OTP | IOPORT | single-port (3ch only) DMAMUX | --- | ||
| H5 | 2023 | Secure Hi‑end | M33 | 250 MHz | OTG_FS |
For FLASH variants across families discussed here.
GPIO on AHB is faster, but GPIO on APB in 'F1 allows bit-banding.
IOPORT is a dedicated port on the Cortex-M0+ processor, allowing faster access from processor to GPIO at the cost of preventing DMA from accessing it.
In 'H7, GPIO is on a secondary bus-matrix, removed from processor and DMAs (except BDMA) through two busmatrices and respective bridges, making "manual toggling" of GPIO surprisingly slow.
The single-port DMA is described in AN2548, dual-port DMA in AN4031. The DMA column also indicates, how requests from peripherals are steered to DMA: the simplest approach is that requests from several peripherals to an individual DMA channel are simply ORed together; in more advanced models there is a request-selecting multiplexer controlled by bits in DMA registers; and in the newest models there is a standalone DMAMUX unit, effectively implementing a full matrix between requests from various peripherals and the set of available DMA channels (plus some additional features). In 'H7, there's one advanced MDMA on the AXIM bus matrix, two dual-port DMA and one single-port DMA (as BDMA). In 'U5, the DMAs are very different from rest of the STM32. As far as requests go, GPDMA and LPDMA both contain an embedded unit similar to DMAMUX. GPDMA is dual-port, LPDMA is single-port.
